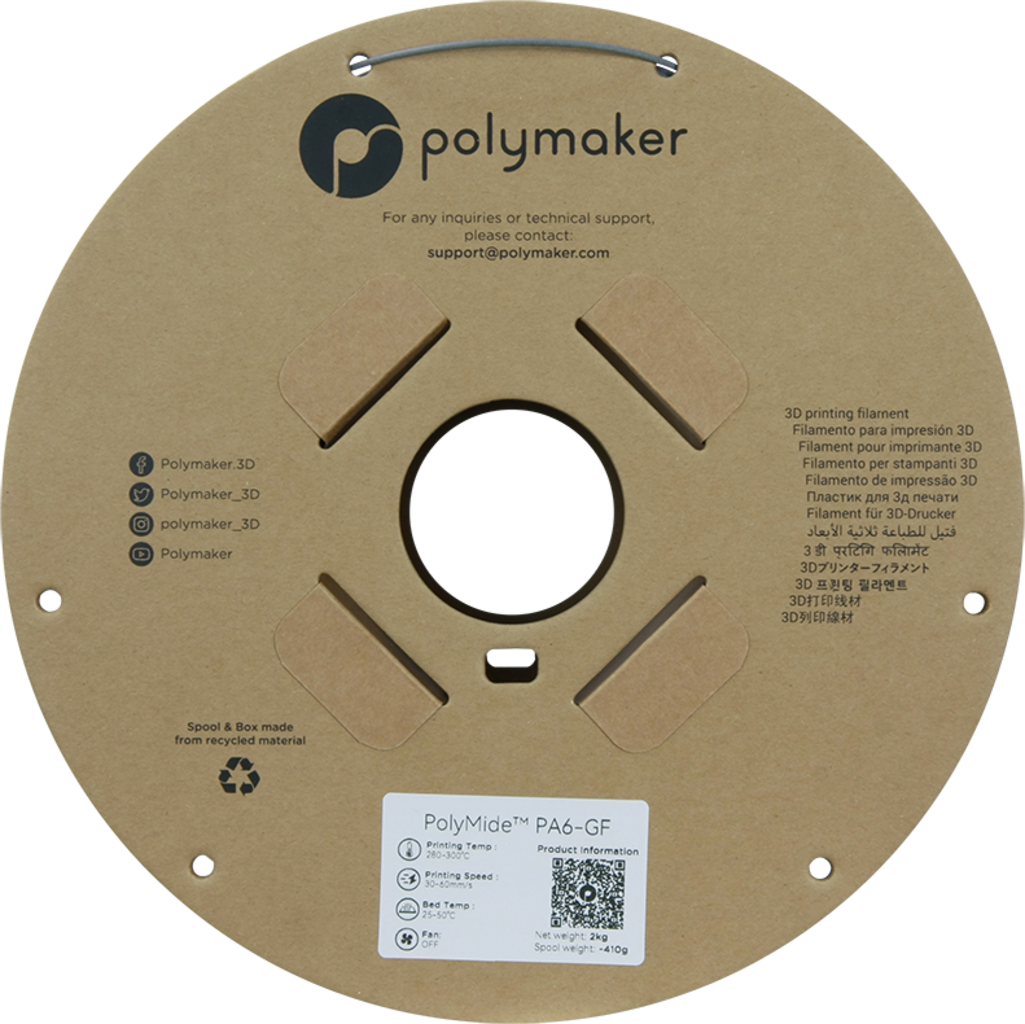

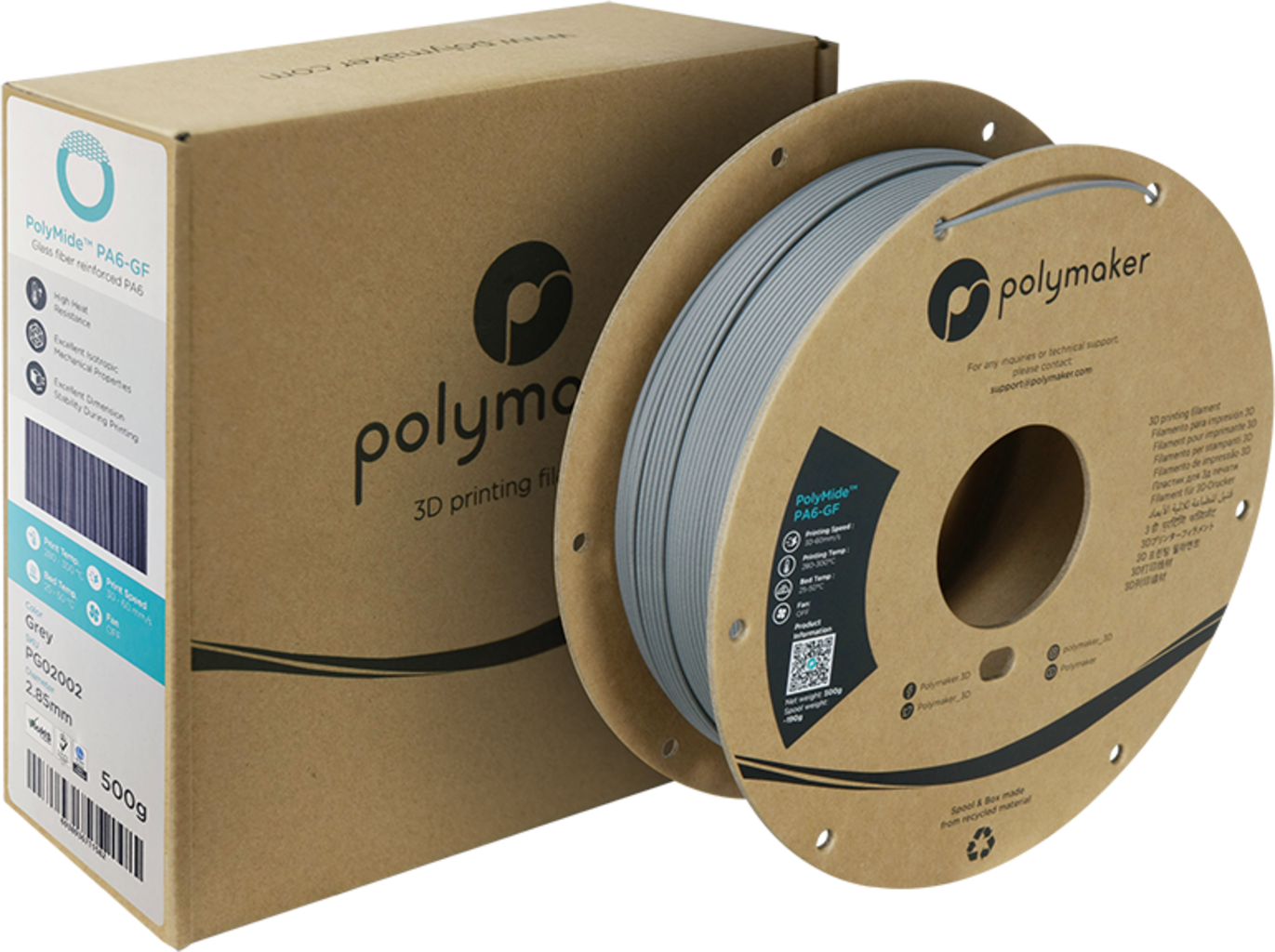

Polymaker PolyMide PA6-GF Grey, 2.85 mm / 2000 g

Name: Polymaker PolyMide PA6-GF Grey, 2.85 mm / 2000 g
Brand: Polymaker
SKU: PM-PG02004
Price: 90.39 GBP
Availability: InStock
Rating: 5 (2 reviews)

Glass fiber reinforced nylon in grey

2 Customer Ratings

£90.39 £151.00 -40%

(£45.20 / kg, Price shown includes 20% VAT. - Excludes delivery costs)

Colour:

Polymaker

PolyMide PA6-GF Grey

Glass fiber reinforced nylon in grey

£90.39 £151.00

(£45.20 / kg)
5.0 (2)
Polymaker

PolyMide PA6-CF Black

Carbon fibre reinforced nylon in black

£46.59 £52.00

(£93.18 / kg)
5.0 (5)
Polymaker

PolyMide PA612-CF Black

Carbon fibre reinforced nylon filament

£42.35 £47.00

(£84.70 / kg)
5.0 (1)
Polymaker

Polymide PA12-CF Black

Carbon fibre reinforced nylon filament

£76.25 £84.50

(£152.50 / kg)
5.0 (2)

Features & Advantages

Excellent thermal properties
High mechanical resistance
Good layer adhesion

Item no.: PM-PG02004, Content: 2.000 g, EAN: 6938936712831

Product information & technical details

Item no.: PM-PG02004
Manufacturer No.: PG02004
Manufacturer: Polymaker
Content: 2.000 g
Diameter: 1,75 mm, 2,85 mm
Product type: PA - Nylon Filaments
Color: Grey / silver
System: Spool
Recommended processing temperature: 280 - 300 °C
Recommended heating temperature: 25 - 50 °C

Description

PolyMide ™ PA6-GF is a glass fibre reinforced PA6 filament (nylon 6). The material has excellent thermal and mechanical properties without affecting the layer adhesion.

Heat distortion resistance (ASTM D648 - ISO 75)
	1.80 Mpa HDT-A	0.45 Mpa HDT-B
PolyMide PA6-CF	196 ° C	215 ° C
PolyMide PA6-GF	124 ° C	191 ° C
Standard PA6	80 ° C	96 ° C
PolyMide CoPA	71 ° C	91 ° C

Recommended print settings:

Nozzle temperature: 280 - 300 ° C
Heating bed temperature: 25 - 50 ° C (do not exceed 50 ° C)
Installation space temperature: 25 - 50 ° C (do not exceed 50 ° C)
Printing speed: 60 mm / s
Fan: OFF

The print settings are based on a printer with a 0.4 mm nozzle and are reference values only.

Print bed

PolyMide ™ PA6-GF can be printed on almost any surface with a thin layer of PVA adhesive or Magigoo PA. We recommend a flexplate to facilitate removal of the model from the plate.

Nozzle

PolyMide ™ PA6-GF contains 25% chopped glass fibres, which makes it very abrasive. It is important to use an abrasion resistant nozzle.

PolyMide ™ PA6-GF can easily damage a brass nozzle after several hundred grams of printing. Hardened nozzles are more expensive than conventional brass nozzles. Therefore, it is important to consider the amount of materials to use.

Hot-End

Polymaker recommends a full-metal hot-end that maintains a stable temperature of at least 280 ° C.

Annealing the components

Polymaker recommends curing all models made with PolyMide ™ PA6-GF. This allows the user to utilize the full mechanical and thermal properties of this material. During annealing, the model is placed in an oven at 90 ° C for 2 hours.

For more tips and information, please read the "Product Information Sheet".
