LDO Motors Orbitool Toolboard Kit, Orbiter 2

Name: LDO Motors Orbitool Toolboard Kit, Orbiter 2
Brand: LDO Motors
SKU: LDO-LDO-O2-TBK
Price: 46.41 GBP
Availability: InStock
Rating: 5 (1 reviews)

Powerful board specifically for the Orbiter Extruder

1 Customer Rating

£46.41 £54.50 -15%

(Price shown includes 20% VAT. - Excludes delivery costs)

Features & Advantages

For Orbiter Extruder
STM32F042 Microcontroller
Versatile Connectivity

Item no.: LDO-LDO-O2-TBK, Content: 1 pc, EAN: 6975415152719

Product information & technical details

Item no.: LDO-LDO-O2-TBK
Manufacturer No.: LDO-O2-TBK
Manufacturer: LDO Motors
Content: 1 pc
Product type: Extruder, Mainboards

Description

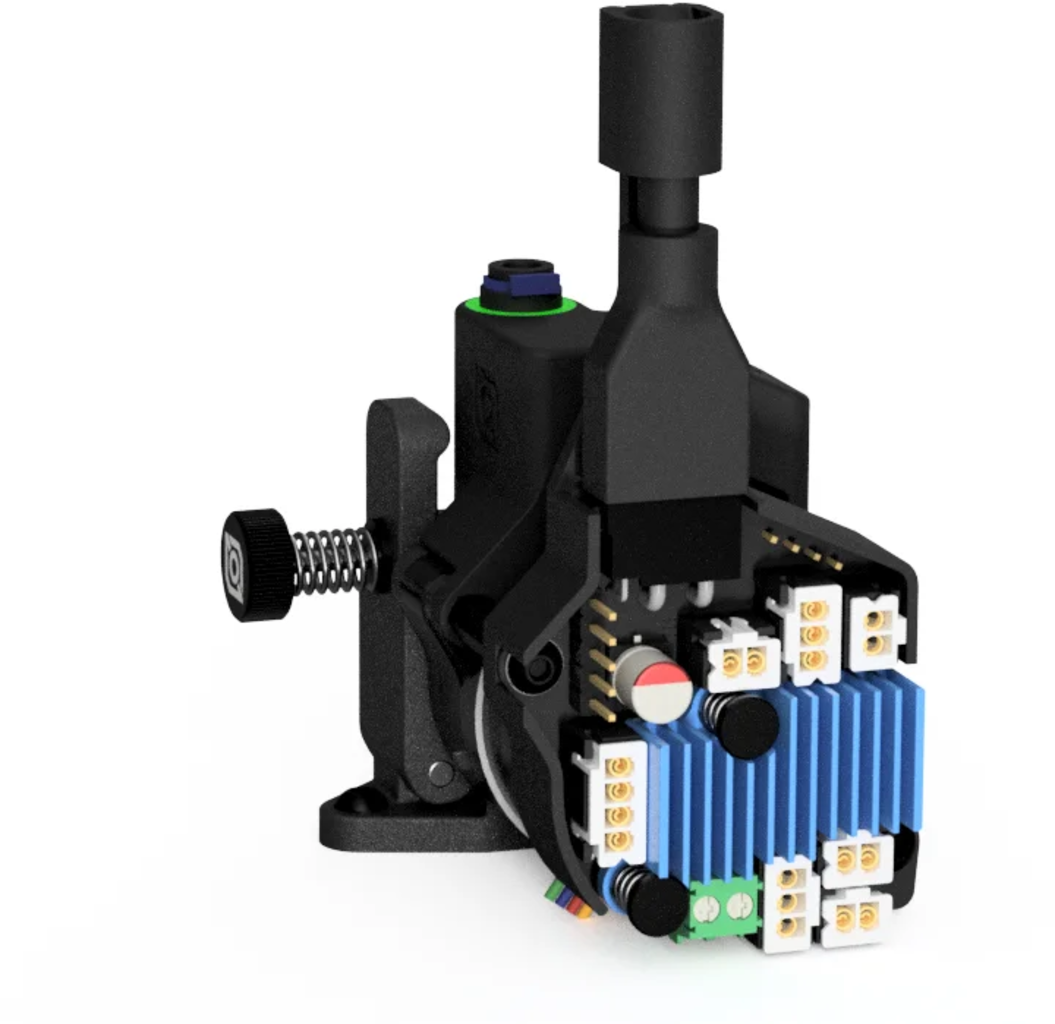

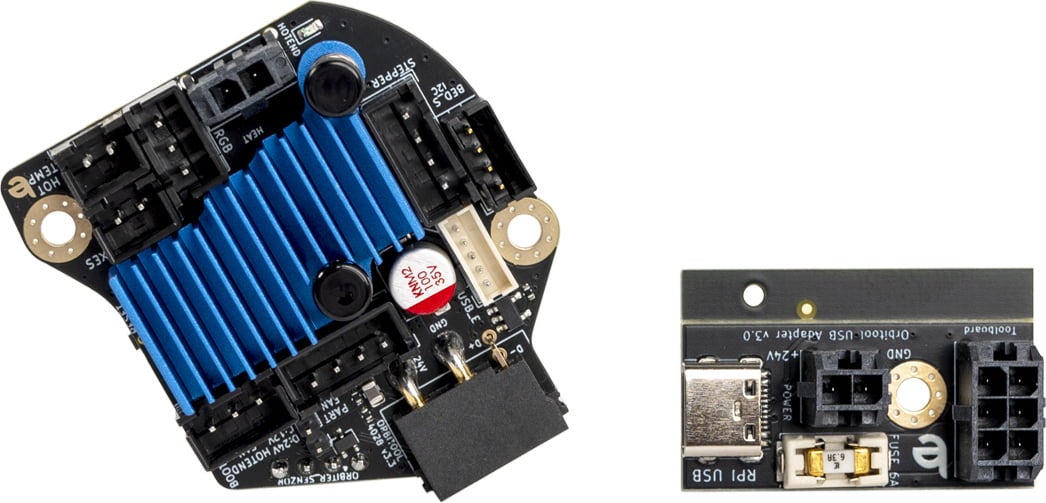

The Orbitool Toolboard Kit from LDO Motors is specifically designed for use with the Orbiter extruders. The board is designed to protect against common user errors and 3D printer defects to provide the highest level of user-friendliness and to make working with the printer more pleasant and efficient overall.

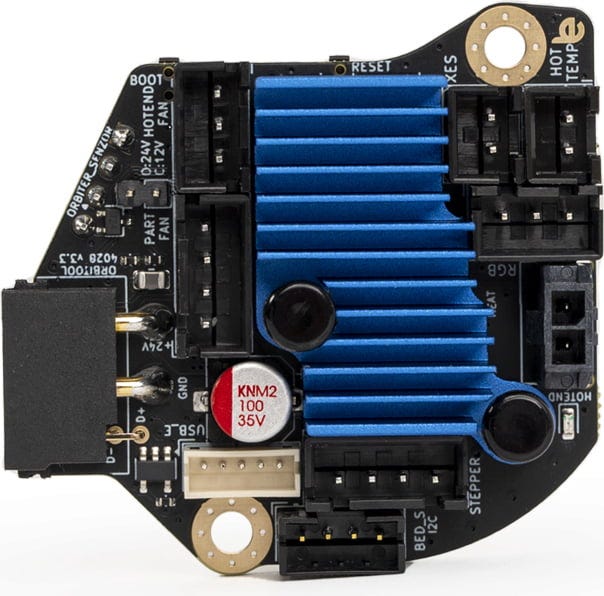

Main features at a glance:

STM32F042 microcontroller with 48MHz,

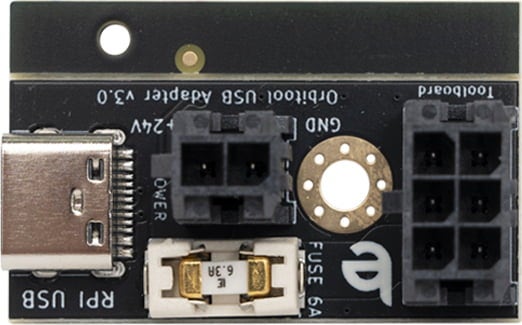

USB communication with Raspberry Pi,
integrated LIS2DW12 acceleration sensor,
TMC2209 Extruder Stepper Driver,
Direct connection to the orbiter sensor,
PWM-controlled fan outputs,
DC-DC converter-based hotend fan driver, compatible with 12/24V fan types,
the input from the heated bed temperature sensor is compatible with standard NTC or PT1000 temperature sensors,
I/O for bed levelling,
X-Stop sensor input,
RGB LED driver output,
integrated temperature sensor,
efficient thermal management system.
